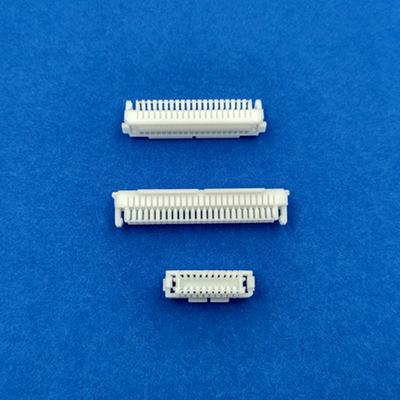

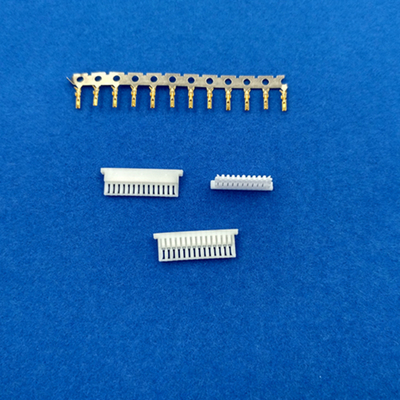

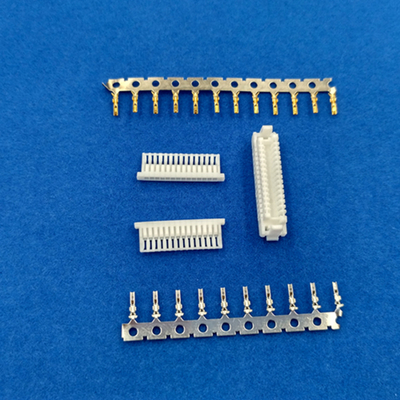

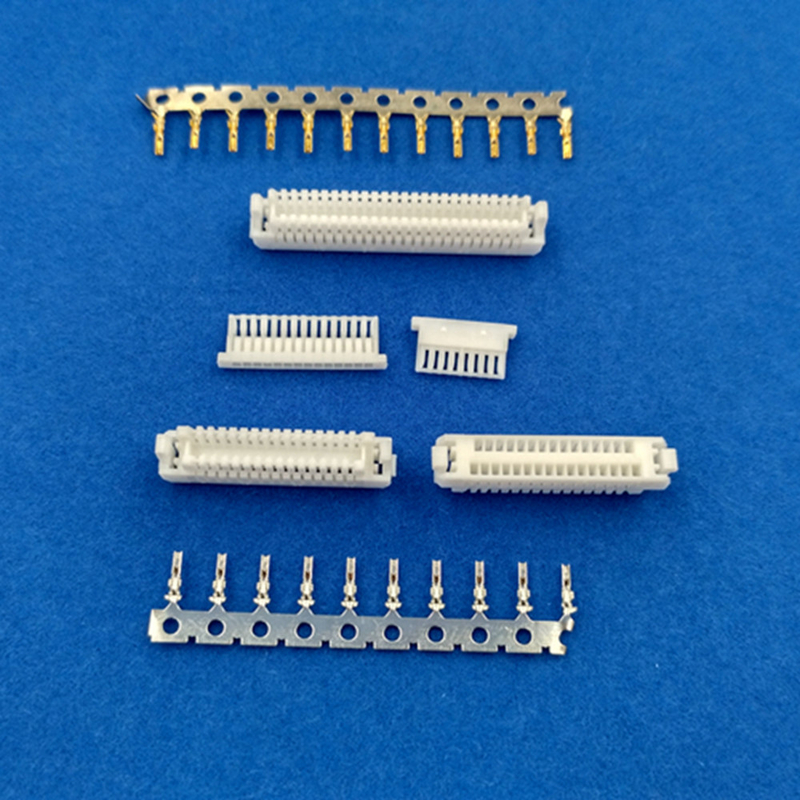

1.0mm Pitch SHL SHLD Connector Equivalent AWG28# Crimp Housing
Product Details:
| Place of Origin: | Dongguan City,China |
| Brand Name: | RCH |
| Certification: | IATF16949;ISO9001 |
| Model Number: | WCBK001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | USD0.01 to USD5.0 per pcs |
| Packaging Details: | 1000pcs/Bag |
| Delivery Time: | 2 to 4 weeks |
| Payment Terms: | TT, Paypal, Western Union |
| Supply Ability: | 300000 per week |
|
Detail Information |
|||
| Connector Type: | Female/Male | Operating Temperature: | -40℃ To +85℃ |
|---|---|---|---|
| Withstand Voltage: | AC 1500V/minute Or Other | Pitch: | 0.5mm To 7.50mm Etc |
| Insulation Resistance: | 1000MΩ Min | Pin Number: | 2 To 40 |
| Contact: | Brass, Phosphor Bronze | Durability: | 1000 Cycles Min |
| Highlight: | SHL SHLD Connector,1.0mm Pitch SHL SHLD Connector |
||
Product Description
1.0mm Pitch SHL SHLD Connector Equivalent AWG28# Crimp Housing
Product Description:
Wire Connector Housing is an IDC connector and crimp housing that is designed to provide reliable connectivity to a wide range of applications. It is extremely durable, with a minimum rating of 1000 cycles, and is available in a variety of materials such as PA66, PAT, PBT, and LCP. It is designed to have a pitch range of 0.5mm to 7.50mm and can withstand up to 250V of voltage and AC 1500V/minute of withstand voltage. This Wire Connector Housing is perfect for applications that require reliable and long-lasting connections.
Features:
- Product Name: Wire Connector Housing
- Pin number: 2 To 40
- Operating Temperature: -40℃ To +85℃
- Pitch: 0.5mm To 7.50mm Etc
- Color: Black,Whie/Yellow/Red Etc
- Current Rating: 0.5A Min
- Crimp housing: Yes
- Centronics connectors: Yes
- Amphenol connectors: Yes
Technical Parameters:
| Name | Wire Connector Housing |
|---|---|
| Voltage Rating | 250V Or Other |
| Withstand Voltage | AC 1500V/minute Or Other |
| Application | Electronics,Industry,Home Applications |
| Operating Temperature | -40℃ To +85℃ |
| Insulation Resistance | 1000MΩ Min |
| Pitch | 0.5mm To 7.50mm Etc |
| Durability | 1000 Cycles Min |
| Current Rating | 0.5A Min |
| Type | Crimp housing, Female Socket |
| Color | Black,Whie/Yellow/Red Etc |
Applications:
The RCH WCBK001 wire connector housing is an IDC connector designed for crimp housing applications. This connector is manufactured to IATF16949 and ISO9001 certifications, and has a minimum order quantity of 1000 pieces. It has a price range of USD0.01 to USD5.0 per piece, with 1000 pieces packaged in a single bag. Delivery time is 2 to 4 weeks, and payment terms can be TT, PayPal, or Western Union. The supply ability is 300000 pieces per week, with a minimum of 2 and a maximum of 40 pins, and a pitch range of 0.5mm to 7.50mm. The durability of the connector is 1000 cycles min and it has a current rating of 0.5A min. The operating temperature ranges from -40℃ to +85℃.
Support and Services:
We provide technical support and service for our Wire Connector Housing. Our services include:
- Installation and maintenance assistance
- Product troubleshooting
- Technical support via phone, email, or live chat
- Replacement of defective components
- Software updates and upgrades
- Product training
If you need technical support or service for your Wire Connector Housing, please contact us at support@example.com.
Packing and Shipping:
The packaging and shipping of Wire Connector Housing should include the following:
- The product should be packaged in a strong, protective box or bag to prevent damage.
- The box or bag should be clearly labeled with the product name, description, and other relevant information.
- The product should be shipped in a manner that minimizes the risk of damage during transport.
- The package should be clearly marked with the recipient's address, contact information, and any special handling instructions.
